Low Noise Amplifier: 84 -92 GHz

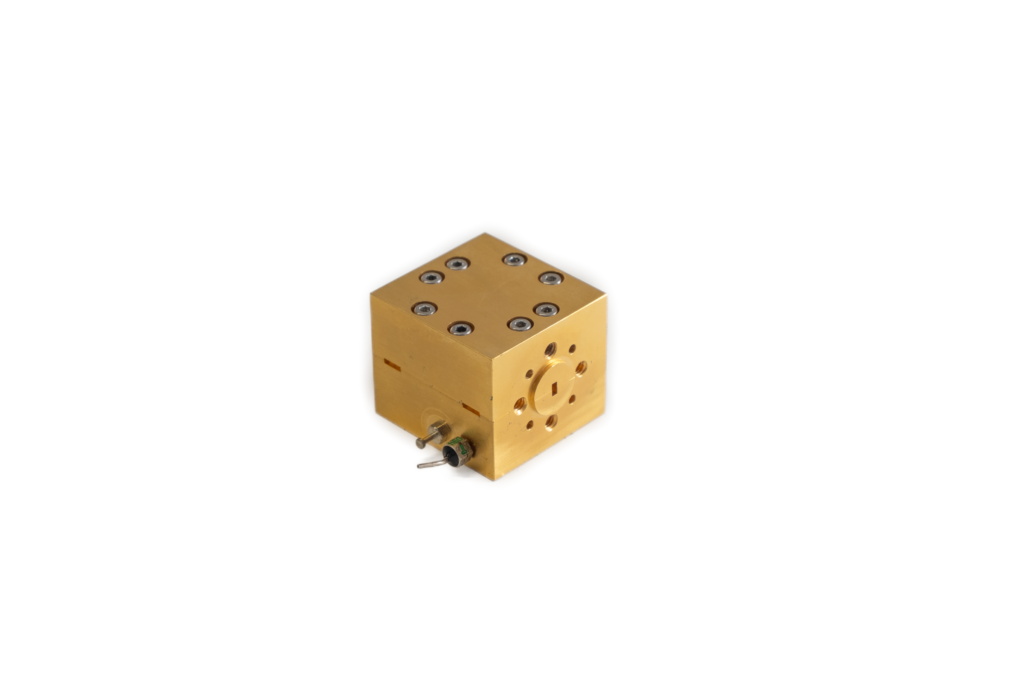

Celtonn’s WB-LNA-86 and WB-LNA-94 are banded W-Band low noise amplifier modules with WR10 waveguide terminals.
The high frequency operation combined with high gain and low noise figure makes it ideal for communication and radar systems.
Technical Specifications
Frequency Range:
84 - 92 GHz
Noise Figure:
3.5 dBm
Input Return Loss:
10 dB
Output Return Loss:
12 dB
P1dB:
14 dBm
Gain:
35 dB
Voltage:
5 - 7 V
Current:
400 mA
Key Features
- Low Noise Figure 3.5 dB
- WR-10 waveguide interface
- Compact design for satellite payload integration
- Precision machined housing
- Designed for the 86 - 92 GHz licensed band
Applications
Ideal for:
- LEO/MEO/GEO satellite communication systems
- Ground station infrastructure
- Satellite uplink/downlink systems
- High-throughput satellite networks
- Aerospace payloads
- W-Band test and measurement front ends
