Our Products
High-performance RF and satellite hardware engineered for mission-critical systems.
- All Products
- LNA's & Amplifiers
- Filters & Mixers
- K-Band Components
- W-Band TX/RX

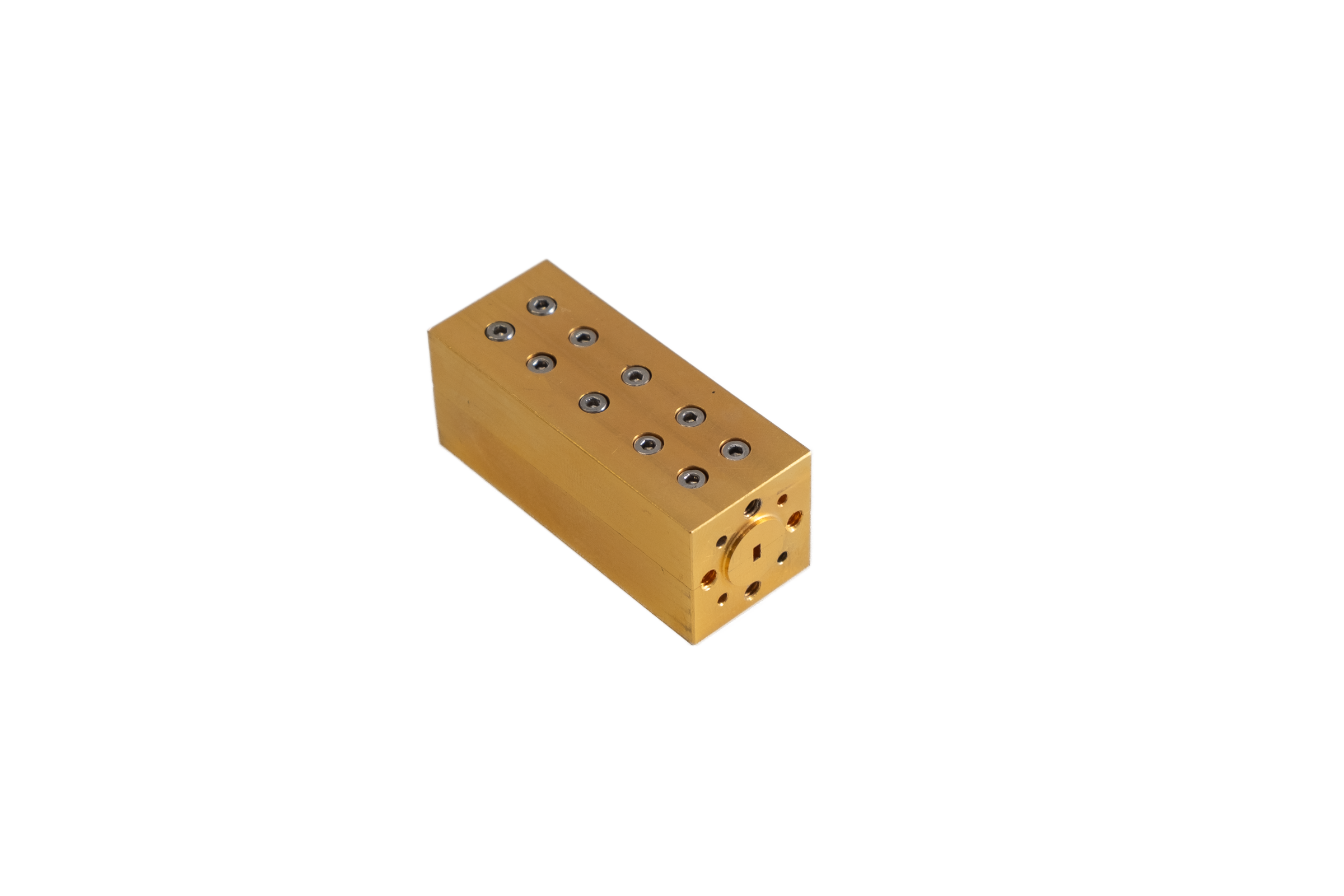

W-Band Bandpass Filter
WB-9296FLTR is a WR10 Bandpass filter in the band 92-96GHz.

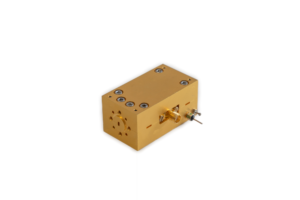

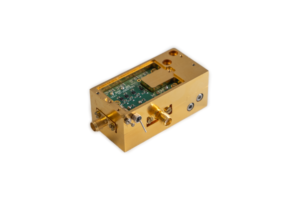

W-Band Receiver Module
WB-RX-9296-LN is a highly sensi9ve W-Band Receiver nominally works from 92-96GHz but can be customized to work in
most of the W-Band Frequencies.

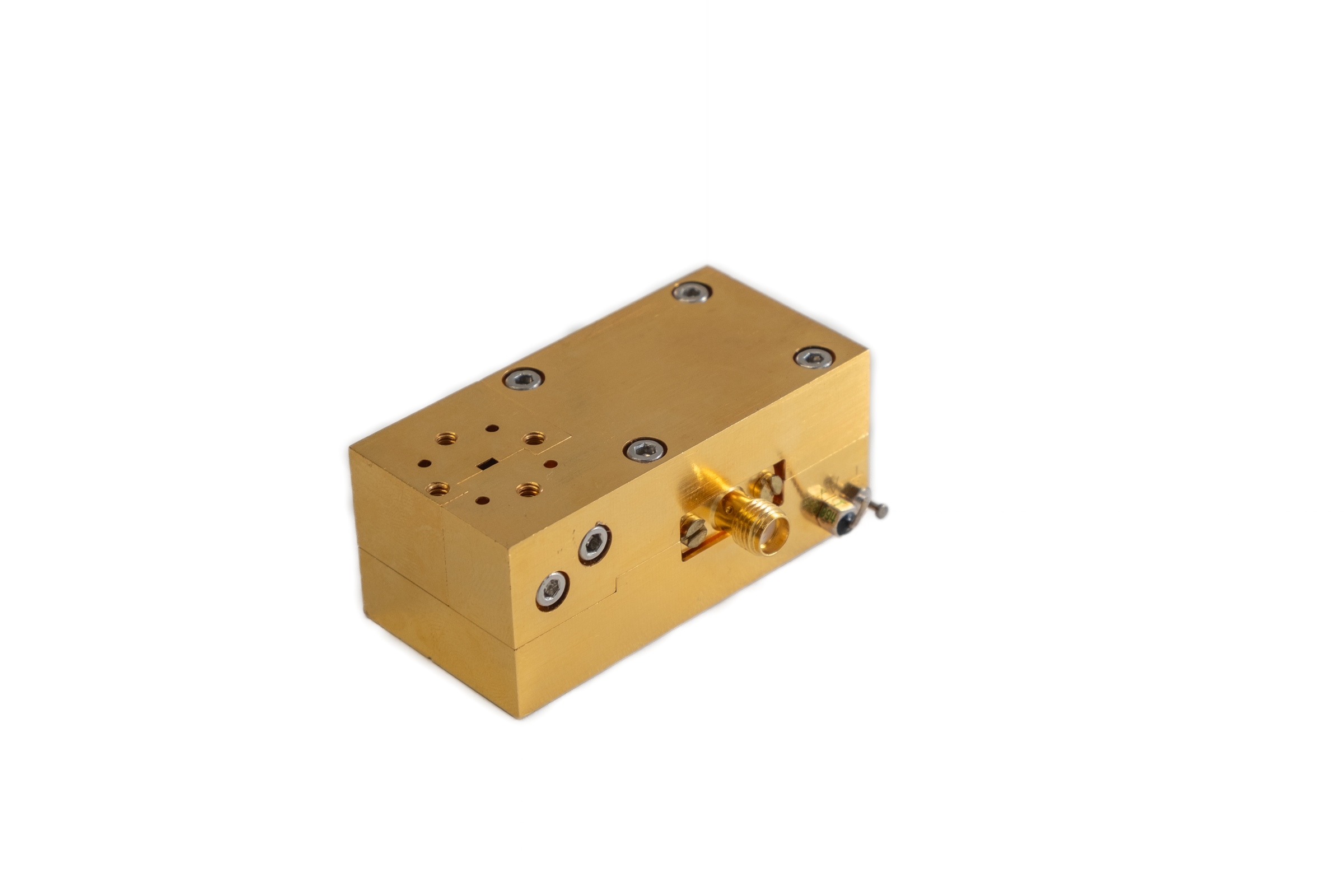

W-Band Transmitter Module
K-Band Frequency Divider
(CLT- KA01A-MXR Passive IQ Mixer) High-frequency RF subsystem for satellite communications.

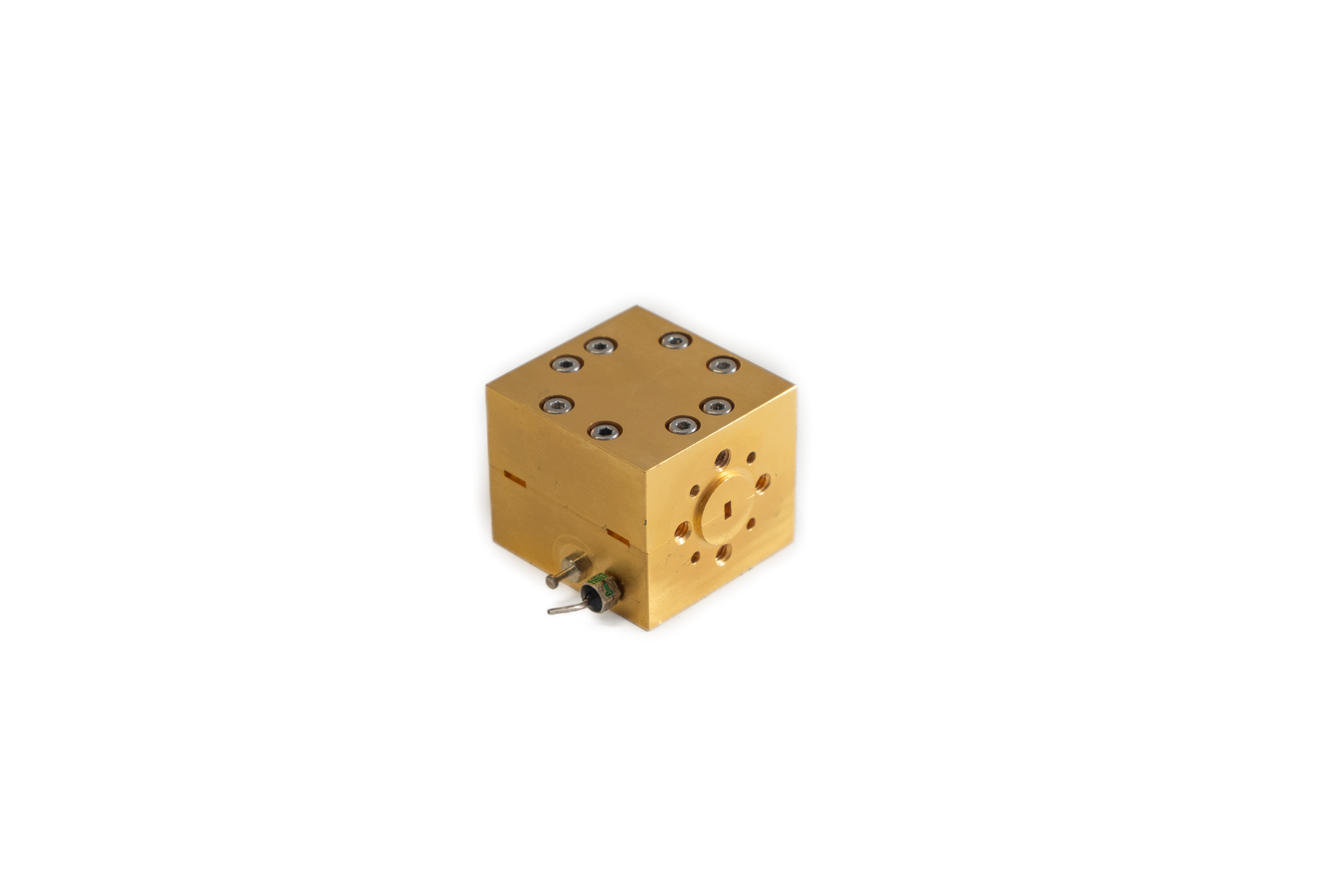

Low Noise Amplifier: 89 - 97 GHz
High-gain, low-noise WB-LNA-86 and WB-LNA-94 modules designed for W-Band operation. Featuring WR10 waveguide terminals, they provide the high-frequency performance essential for advanced communication and radar systems.
Low Noise Amplifier: 84 -92 GHz
Celtonn’s WB-LNA-86 and WB-LNA-94 are banded W-Band low noise amplifier modules with WR10 waveguide terminals.

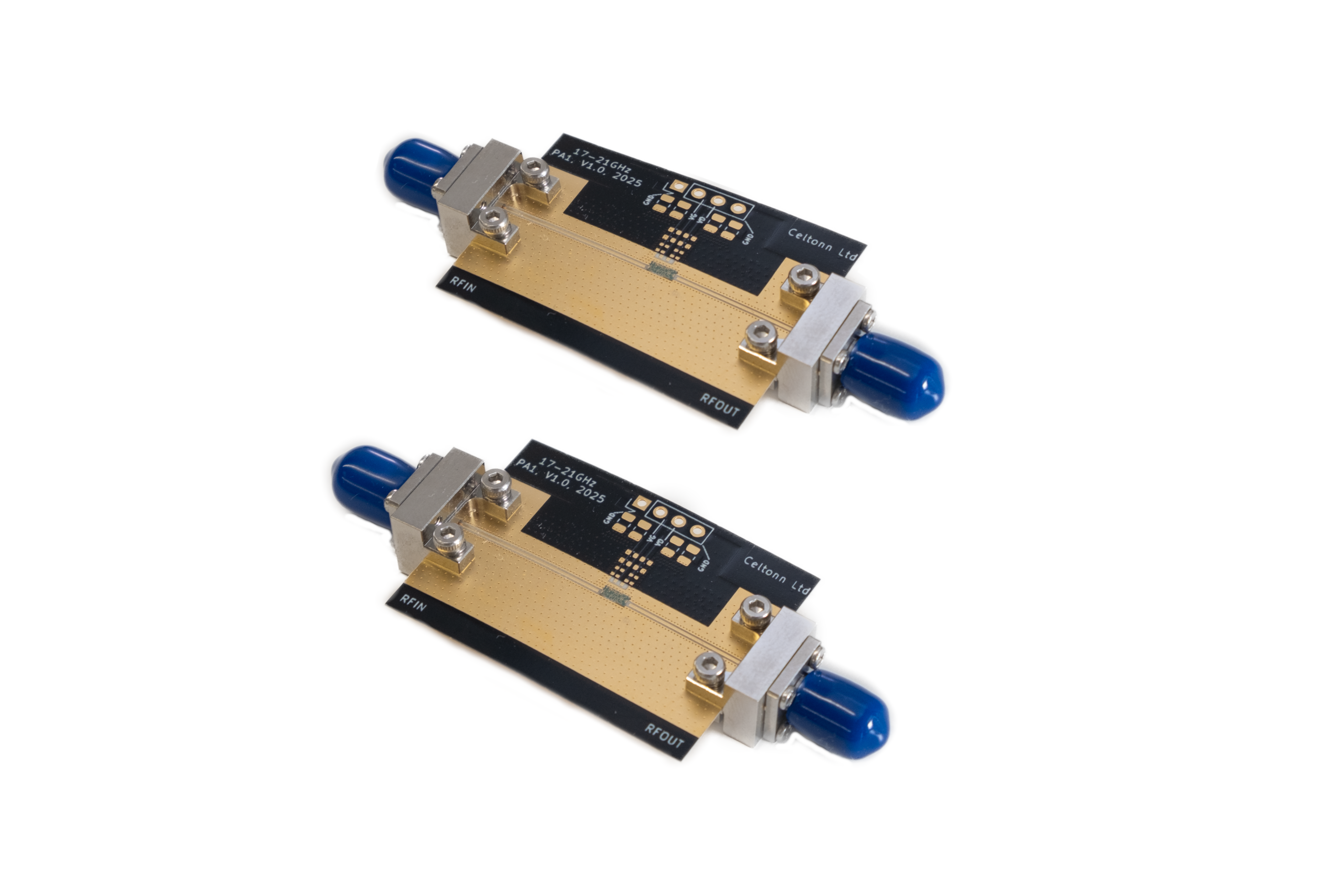

Ku-Band High Gain Medium Power Amplifier: 16 – 22 GHz
A connectorized Ku-Band power amplifier delivering >20 dB gain and 22 dBm saturated output power from 16–22 GHz. Designed for GEO, MEO, and LEO payloads, it is ideal for transmit driver stages, equalization, and general-purpose signal conditioning.
Ka Band High Gain Medium Power Amplifier: 26 -34 GHz
A connectorized Ka-Band power amplifier delivering >23 dB gain and 20 dBm saturated output power across 26–34 GHz. Optimized for efficiency, it supports next-gen HTS payloads, ground terminals, and feeder links across GEO, MEO, and LEO orbits.

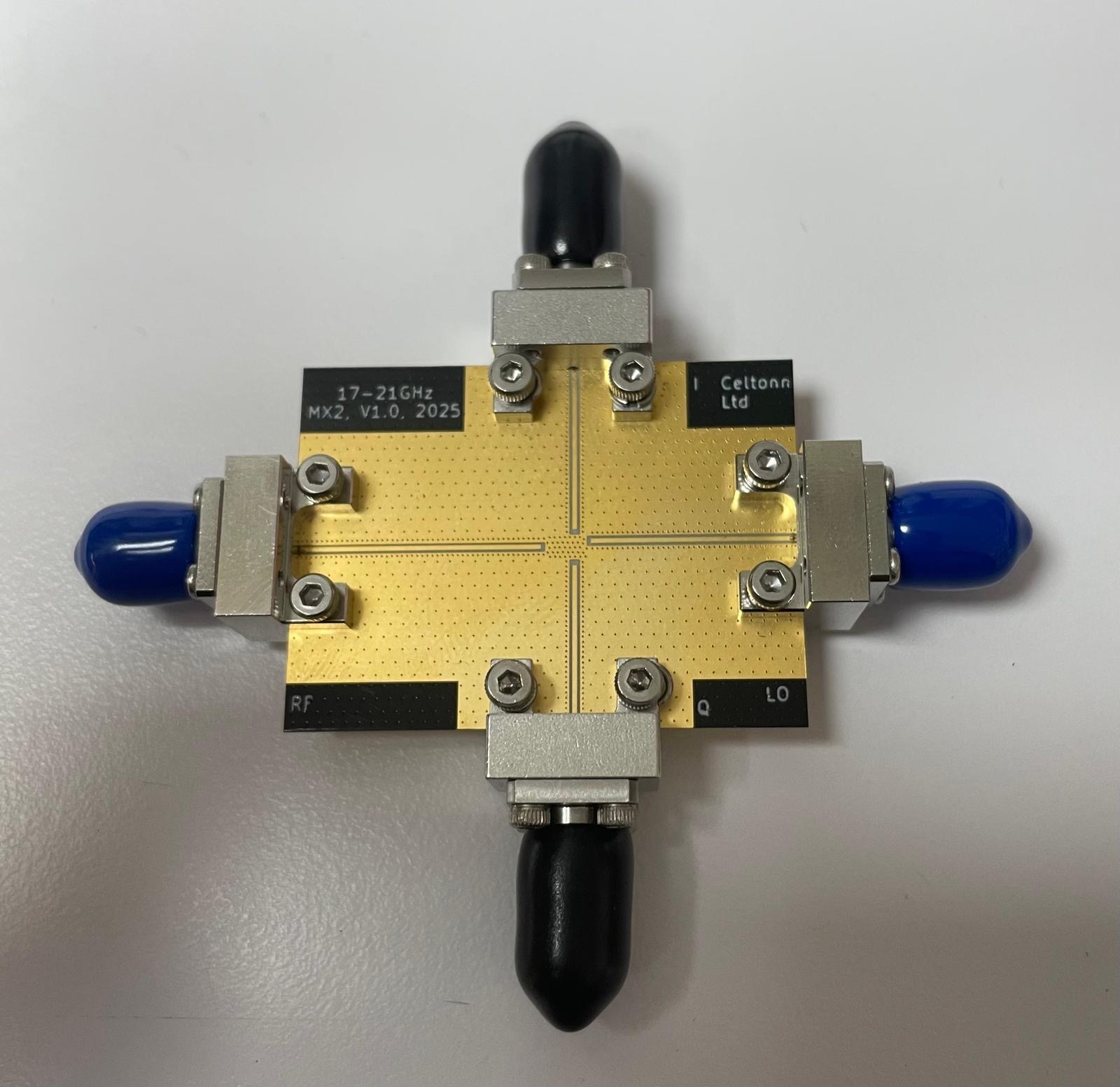

K-Band CLT- KA01A-MXR Passive IQ Mixer
Connectorized K-Band components optimized for GEO, MEO, and LEO satellite payloads. Includes the CLT-KA01A-MXR, a high-performance passive IQ mixer for versatile up and down-conversion.
K Band Passive IQ Mixer 27 GHz
A connectorized Ka-Band mixer (27–32 GHz) optimized for a 24 GHz local oscillator. Supporting both up and down-conversion, it is designed for high-throughput satellite systems and next-gen GEO/LEO broadband platforms.
Ka Band Analog Phase Shifter: 16 -22 GHz
A connectorized Ka-Band analog phase shifter offering continuously variable phase control across the 16–22 GHz range. Featuring over 350 degrees of phase range and simple low-voltage tuning, it is optimized for beam steering, phased array calibration, and signal equalization in GEO, MEO, and LEO satellite payloads.
Ka Band Analog Phase Shifter: 25.5 -32.5 GHz
A connectorized analog phase shifter operating from 25.5 to 32.5 GHz, covering core Ka-Band uplink and downlink allocations. Providing over 400 degrees of phase range with simple voltage-controlled tuning, it serves as the high-frequency complement to the CLT-KA07A-PS for coherent dual-band phased array architectures.
Can't find what you're looking for?
Our team can design custom RF solutions tailored to your specific requirements.
