W-Band Bandpass Filter

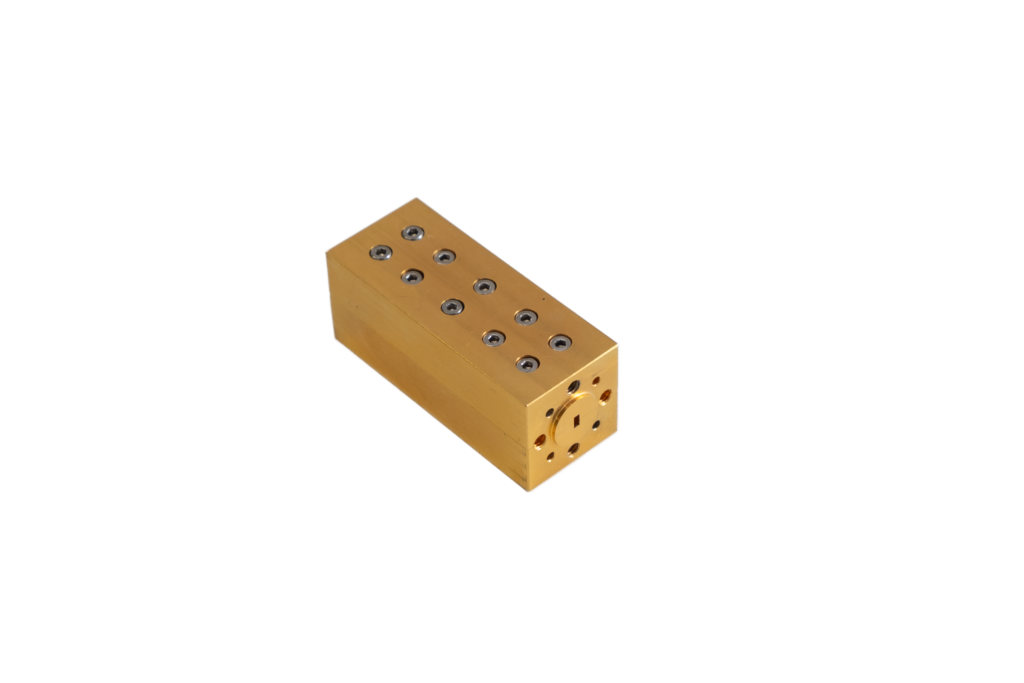

Designed and manufactured in Dublin to the exacting tolerances demanded by space and aerospace programmes, the WB-9296FLTR delivers sharp out-of-band rejection with low in-band insertion loss in a compact, robust WR-10 waveguide module. It is a drop-in solution for system integrators who need a qualified, characterised filter without the lead time and risk of a custom design.
Technical Specifications
Frequency Range:
92 – 96 GHz
Insertion Loss:
1.2 dBm
Rejection at 90 GHz:
35 dB
Rejection at 86 GHz:
>40 dB
Key Features
- Low insertion loss across the full 4 GHz passband
- Precision machined housing
- WR-10 waveguide interface
- Steep skirt selectivity with strong out-of-band rejection
Applications
Ideal for:
- High-throughput satellite (HTS) ground terminals and feeder links
- 94 GHz imaging and surveillance radar
- W-Band point-to-point and 6G fixed wireless backhaul
- Passive and active atmospheric radiometry
- W-Band test and measurement front ends
- Receiver chain pre-select filtering in aerospace payloads
Interested in this product?
Custom frequency ranges, connector configurations and qualification levels available on request.
Contact sales@celtonn.com for volume pricing and lead times.
